pGOLD™ Slides and pGOLD™ Assay Platform

PLASMONIC GOLD FILM TECHNOLOGY

Plasmonic gold allows for a significant improvement in signal-to-noise ratio, surpassing other substrates by up to 100 fold in sensitivity and dynamic range. Plasmonic gold (pGOLD™) substrates are useful for fluorescence and Raman based cellular imaging and molecular assays. Our pGOLD™ technology:

suppresses or blocks background signals enables multi-color imaging can be compatible with standard cellular imaging, microarrays, and flow cytometric assay steps and equipment

pGOLD™, our innovative signal amplifying platform, originated from Stanford University and was published in Nature Communication and Nature Medicine. This technology is nano-engineered and is a signal enhancing near infra-red fluorescence detection platform. The high sensitivity of the pGOLD™ technology has already been displayed in novel assays for autoimmune diseases and infectious diseases.

Plasmonic gold (pGOLD™) microscope slides enable enhanced fluorescence by up to 100 fold in the wavelength range of 500 – 900nm

PGOLD™ SLIDES PRODUCT

Plasmonic gold (pGOLD™) substrates rely on nanoscience principles, such as nanogap enhanced excitation field strength and reduction in radiative lifetime of molecular excited states, to significantly increase the fluorescence emission of various fluorophores on the substrates.

The fluorescence enhancement is in the wavelength range of 500 – 900 nm for Si based detectors and persists to > 1000 nm for infrared detectors. Substrates are compatible with fluorophores such as Cy3, Cy5, IRDye680, and IRDye800 dyes in this wavelength range and give the highest enhancement in the near-infrared window. The substrates can also enhance the Raman scattering signals of molecules by orders of magnitude.

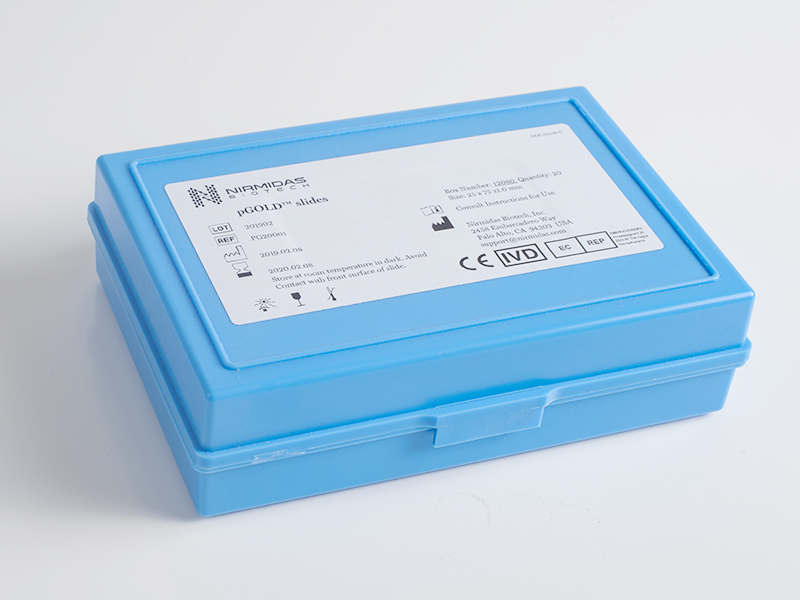

pGOLD™ slides are manufactured in compliance with ISO 13485 regulations.  The production follows rigorous work instructions and quality control procedures to ensure consistent performance and stability for use in clinical diagnostic laboratories, by trained laboratory personnel. The slides can also be used in research and development capacity.

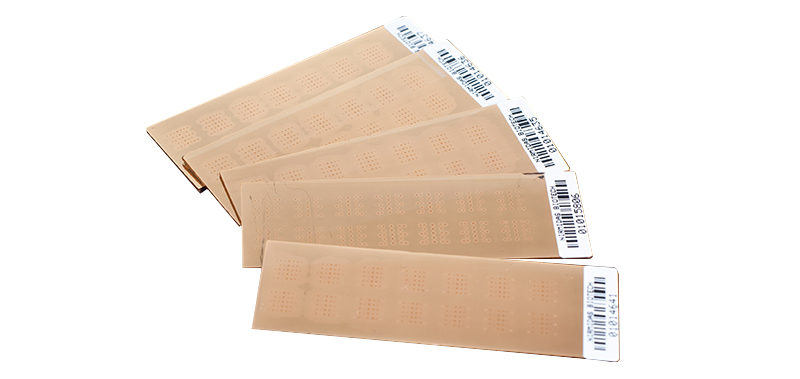

Currently, we have the following pGOLD™ configurations that come in packs of 20 slides, 10 slides, or 5 slides:

• Barcoded pGOLD™ Slide (product number: NBPG-0005A) - for IVDR use or RUO


• Nonbarcoded pGOLD™ Slide (product number: NBPG-0005B) - for RUO

• Customized pGOLD™ Slide (product number: NBPG-0005C) - for RUO

  Inquiry

PGOLD™ ASSAY PLATFORM TECHNOLOGY

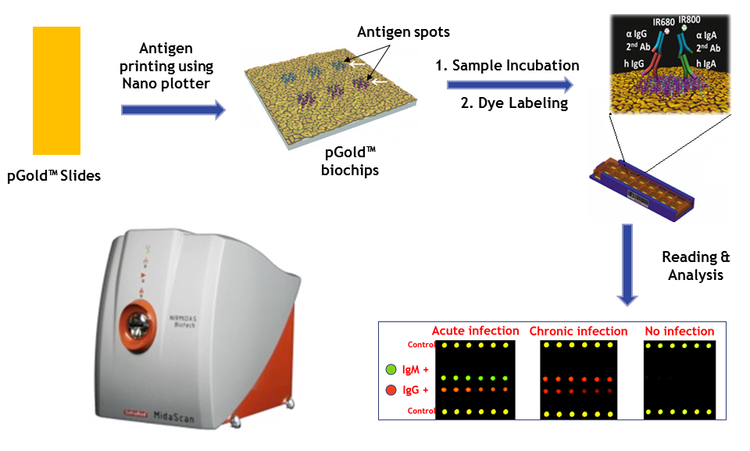

Nirmidas pGOLD™ Assay Platform Technology is an all-in-one system for biomarker fluorescence detection. It combines plasmonic gold slides (pGOLD™ slides), MidaScan-IR™ or MidaScan™ Scanners, and multiplexed ELISA-like Assay kits to deliver biomarker detection of protein microarray and imaging assays. pGOLD™ Slides can be used in other assay platforms for development of assays and with other microscopes and imagers.

Nirmidas pGOLD™ Assay Platform

PGOLD™ ASSAY PLATFORM APPLICATIONS

Application areas include DNA, RNA, and Protein Microarrays, cell/tissue imaging, Immunohistochemistry (IHC), Single Molecule Imaging, and ELISPOT.

Nirmidas provides all-inclusive kits, which may include dye-labeled detection antibodies, standard controls, diluents, and pGOLD™ biochips.

Other Applications

Fluorescence In Situ Hybridization (FISH), Förster resonance energy transfer (FRET), Fluorescence Recovery After Photobleaching (FRAP), Immunofluorescence Assays, Cellular Assays and more.

pGOLD™ Assay Platform Product Information sheet

LEARN MORE ABOUT THE PGOLD™ ASSAY PLATFORM

We’ll reach out to understand your needs and show you how the Nirmidas pGOLD™ Slides and pGOLD™ Assay Platform can support your needs.

Inquiry form

Please fill out the following form to help us understand your needs better. One of our team members will reach out to you shortly.
